General Modpadz Specs.

MODPADZ Structures: All-Weather Suitability and Performance

MODPADZ prefabricated structures are designed and engineered to thrive in all four seasons and diverse weather conditions. Whether facing extreme heat, cold, heavy rain, or snow, our products offer unparalleled durability and comfort for year-round enjoyment.

• Thermal Insulation: MODPADZ structures are equipped with high-quality insulation materials such as 100mm polyurethane insulation layers and advanced heat-insulating cotton. This ensures optimal temperature control within the structure, keeping interiors cool during hot summers and warm during cold winters.

• Heat Resistance: Our buildings can withstand high temperatures without compromising structural integrity or comfort, making them suitable for regions with hot climates.

• Cold Resistance: Designed for cold weather, MODPADZ structures maintain a comfortable indoor environment even in freezing temperatures.

• Waterproofing: MODPADZ structures feature organized drainage systems and high-grade waterproofing to prevent leaks, even during heavy rainfall. Structures are built to handle precipitation rates of up to 20mm/min.

• Snow Load Performance: Our structures are engineered to withstand substantial snow loads, offering peace of mind in regions with heavy winter snowfall.

• Wind Resistance: MODPADZ structures can resist wind speeds up to a force equivalent of 0.60 kN/m², ensuring safety and stability during high winds and storms.

• Sustainable Features: Energy-efficient lighting and insulation, along with sustainable construction practices, make MODPADZ structures environmentally friendly.

MODPADZ prefabricated structures are the perfect choice for a wide range of climates and environments. Our products offer superior comfort, safety, and longevity, ensuring that your investment remains secure and valuable in any weather condition. Contact us today to learn more about how MODPADZ structures can provide you with a comfortable and sustainable living or working space.

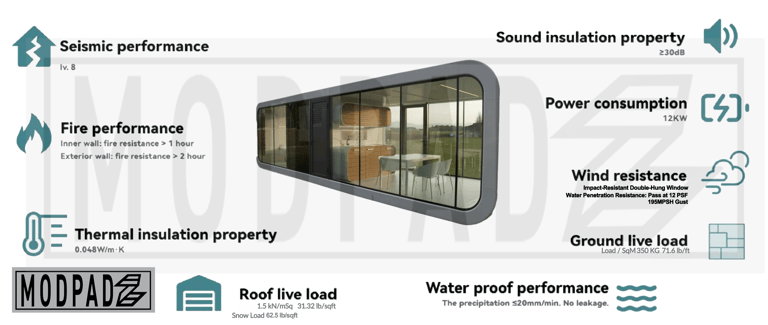

Product Specifications

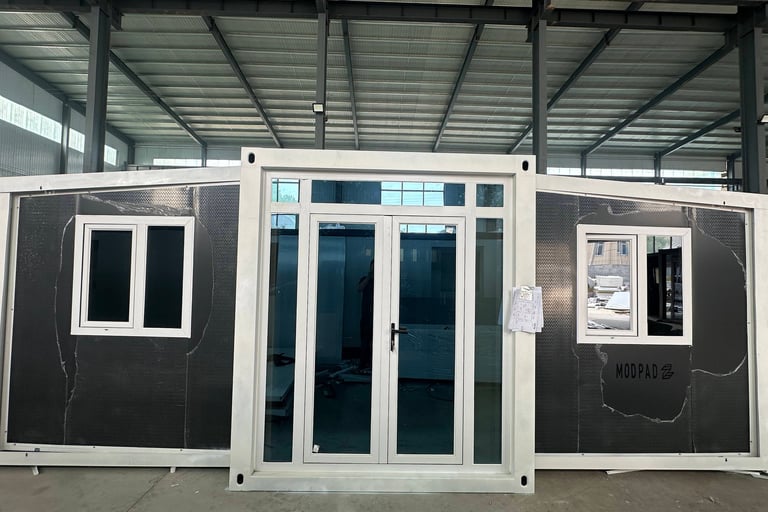

Expandable Homes Specs

Product Characteristics

• Waterproof: 2.5 kN/m²

• Sound Resistance: ≥30 dB

• Fireproof: Grade A

• Seismic Resistance: 99.9999%

• Wind Resistance: 125~160 m/h

• Roof Live Load: 2.0 kN/m²

• Floor Live Load: 2.0 kN/m²

• Lifetime Structural: ~ 30 years

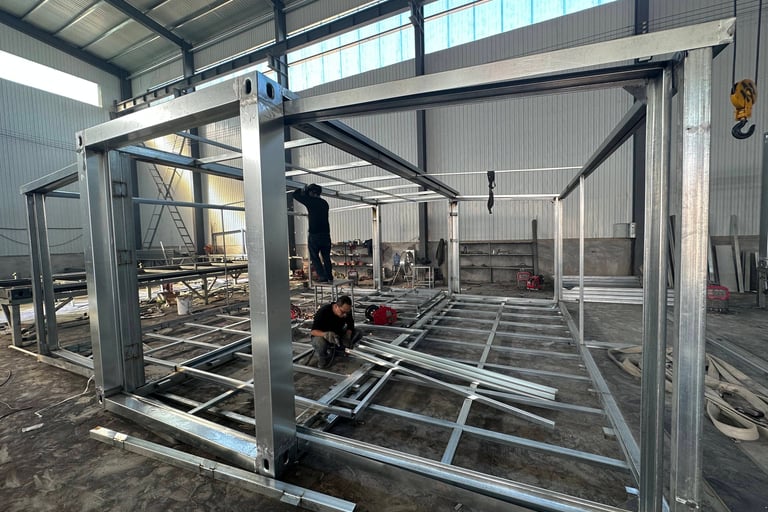

Structural Details

• Side Walls, Front and Rear Wall Panels: t75mm fireproof EPS sandwich panel

• Roof: t75mm fireproof EPS sandwich panel, t50mm fireproof EPS sandwich panel

• Intermediate Roof Insulation: t50mm fireproof EPS sandwich panel

• Internal Ceiling: t0.25mm Type-193 ceiling plate (Optional: white, wooden stripe color, black, gray)

• Internal Partition: t75mm fireproof EPS sandwich panel and glass silk wool (14 KG/m³ density EPS)

• External Roofing: t75mm fireproof EPS sandwich panel

Dimensions and Area Examples (20x40)

• Open Size: 39.71 ft 20.73 ft 8.13 ft

• Folded Size: 39.71 ft 7.22 ft 8.13 ft

• Total Area: 800 sq ft (open), 301 sq ft (folded)
